01
Flip Chip Cob
Wireless LED architecture eliminates wire coverage on the radiate surface. Brighter, more uniform output with 90% less equipment than traditional wire bond technology.
163" Indoor P0.6
163" Ultra-Slim MicroLED | Flip Chip COB
Home TheatresExecutive OfficesLuxury ResidentialFCC, CE, RoHS
163"
SIZE
P0.625
PITCH
5760 x 3240 (8K)
Resolution
3840 Hz
REFRESH
Ultra-slim 8K MicroLED display with Flip Chip COB technology. 20,000:1 contrast ratio, 3840Hz refresh rate, and HDR support. Our flagship display for luxury homes and executive spaces.
02

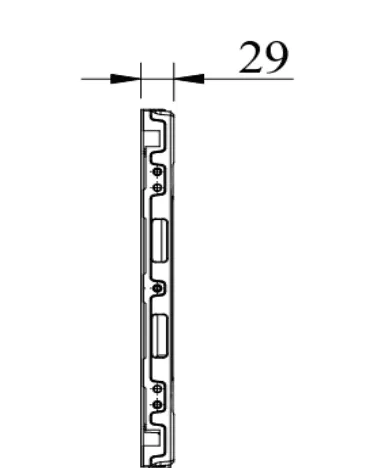

29MM Ultra-Slim
Less than 1.2 inches from wall to surface. Saves space, simplifies installation, enables full front-access maintenance. The thinnest profile in its class.
03
Deep Black
Black polymer surface coating with compound encapsulation. MicroLED delivers high brightness and efficient heat dissipation. The result: blacks so deep they disappear into the wall.
Built for spaces where every pixel matters.
Ultra-fine P0.625 pixel pitch with Flip Chip COB architecture. Designed for close-up viewing in home theaters, executive offices, and luxury environments where image quality is non-negotiable.
Display Specifications
Wall Size
163"
Pixel Pitch
P0.625
Resolution
5760 x 3240 (8K)
Brightness
600-1000 Nits
Refresh Rate
3840 Hz
Contrast Ratio
20,000:1
View Angle
170° x 170°
Physical Specifications
Thickness
29mm
Weight
198 kg (436 lbs)
Dimensions
11.8 ft x 6.6 ft (3.6m x 2.025m)
Panel Count
36 panels (600 x 337.5mm)
material
Die Casting Aluminum
Configuration
Flip Chip COB
Weather Rating
IP30
Ready to see what a video wall can do for your space?
Tell us about your project, space, budget, timeline, ideas. We'll put together a plan and a quote. No pressure, no obligation. Just a conversation.
